In this post, I am going to show you How to make Bar Bending Schedule of #Stair Case in a practical way at the site.

Bar Bending Schedule of Stair Case

Below a plan of the staircase with two flights is given. A Section is also provided with proper reinforcement details. With the help of all these necessary details I am here to teach you to make Bar Bending Schedule of Staircase.

Below I Have Uploaded My Hand Made Documents For You Only On Your Request, So That You Can Download It From Here. But One Thing Keep In Mind That This Is Only The Hand Made Notes.

If You Want Detailed Knowledge Then Watch My Video On YouTube Channel: L & T – Learning Technology.  I Am Telling This Because Many Important Points I Cover During Making Of Video, So If You Want To Know In Detail Then Watch My Video On YouTube.

Click Here To Watch Video

plan of staircase
Below is the shape of a bar which is used in the Stair Case. Now I am going to show you how to calculate the cutting length of all these 3 types of Bar shape in easy steps.
Bar shape of staircase
First of all, we have to calculate the Number of Crank Bar which is Shape-1 and Normal Bar which is Shape-2. So from the calculation we got 7 Nos Crank bar and 6 Nos Normal bar.
Number of Bar
Let us calculate the cutting length of Bar Shape-1.
Bottom bar of staircase
Waist slab thickness
Cutting length of bar
Now let us calculate the Bar shape-2
bar shape 2 of stair case
Calculation of Bar Shape-3 is given below

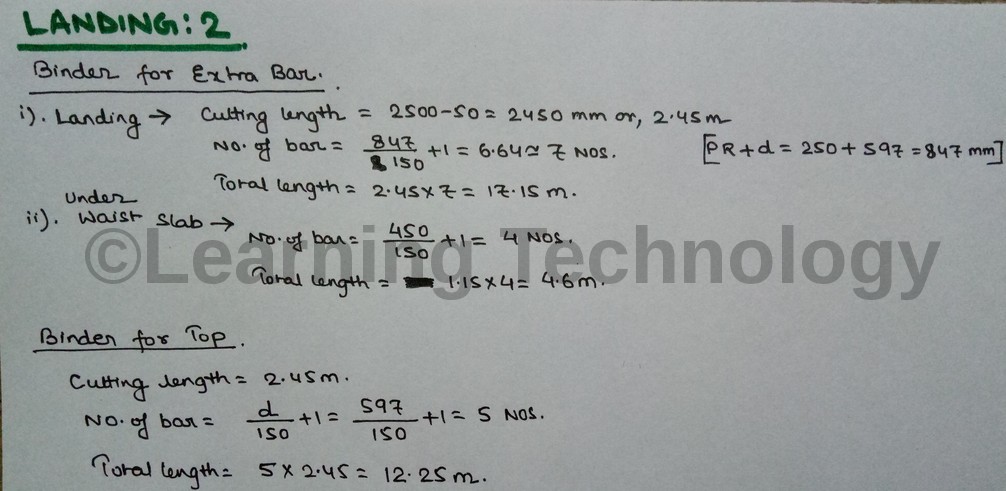

cutting length of top bardevelopment length in staircasecalculation of binderBinder for extra bar
