In this post, I am going to explain to you How to make the Bar Bending Schedule of Slab practically at the site.
Bar Bending Schedule of Slab
Below I Have Uploaded My Hand Made Documents For You Only On Your Request, So That You Can Download It From Here. But One Thing Keep In Mind That This Is Only The Hand Made Notes.
If You Want Detailed Knowledge Then Watch My Video On YouTube Channel: Civil Learning Technology.Ā I Am Telling This Because Many Important Points I Have Covered During Making Of Video, So If You Want To Know In Detail Then Watch My Video On YouTube Which is Given Below.

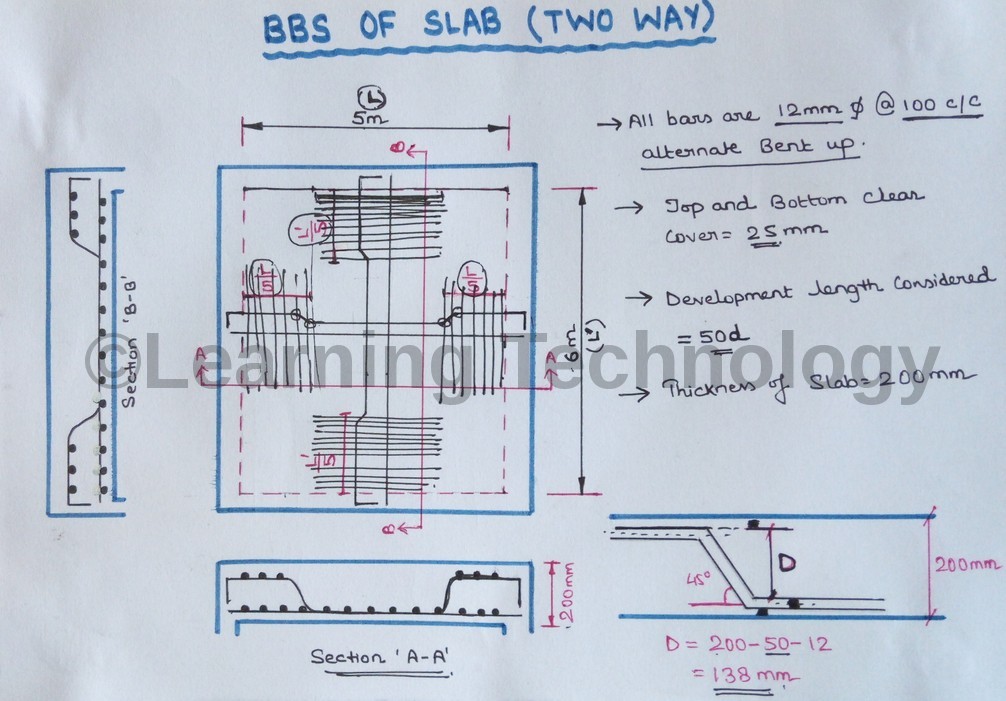

A section of Two way Slab with proper Reinforcement details is given below. With the help of all these necessary details I am here to teach you to make Bar Bending Schedule of Slab.
When the ratio of Longer span to shorter span is less than 2. Then the slab is called Two-way Slab.
- Bar Bending Schedule of Stair Case
- Bar Bending Schedule of Continuous Beam
- How To Make BBS of Column in Details
- How To Calculate Length Of Chord For Circle
- Cutting Length Of Bent Up Bar
- Bar Bending Schedule of Beam
- Cutting length Of 4 Legged Stirrups
- How To Make BBS Of Pile Cap
- How To Make BBS Of Pile Foundation
- Cutting Length Of Circular Stirrups
- Cutting Length Of RECTANGULAR Stirrups
In the figure given below, I have shown Calculation of cutting length of Cranked bar, Straight bar and Top Bar extra at Section A-A.

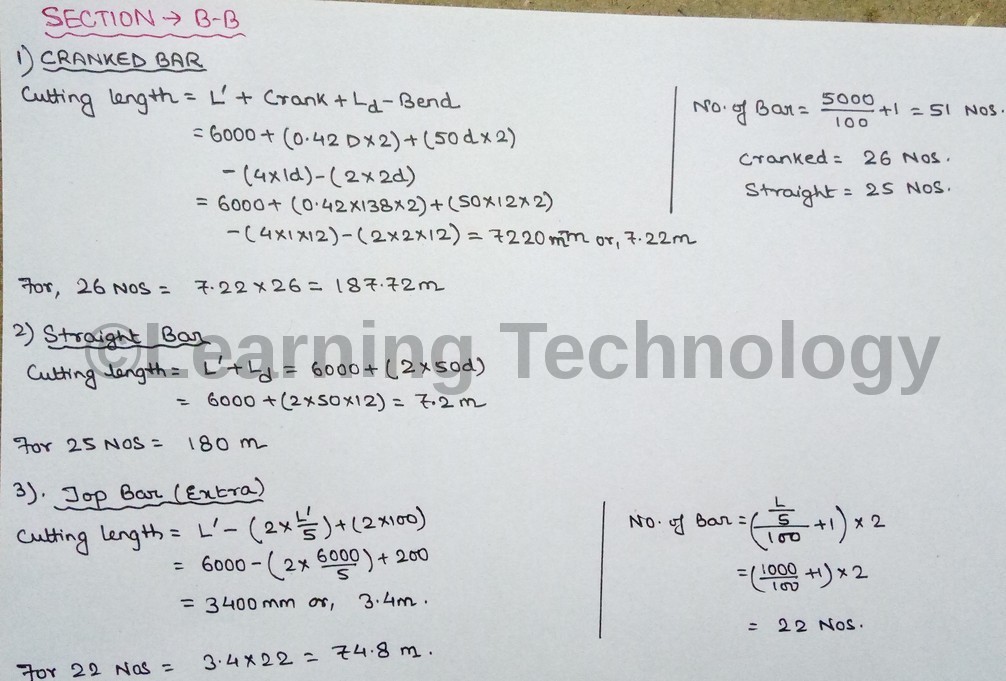

In the figure given below, I have shown Calculation of cutting length of Cranked bar, Straight bar, and Top Bar extra at Section B-B.
I hope you find this information useful. If there is something that I have missed or I do not know, you can comment and tell me which I will try to rectify as soon as possible.
If you have liked this post of mine, then use the social link given below andĀ shareĀ it among your friends on social media. Thanks
SHARE THIS POST, IF YOU LIKE IT !!
