In this post, we will learn about How To Make BBS of Column in Details at site practically.

How To Make BBS of Column in Details

Below I Am Uploading My Hand Made Documents For You Only On Your Request, So That You Can Download It From Here. But One Thing Keep In Mind That This Is Only The Hand Made Notes.

If You Want Detailed Knowledge Then Watch My Video On YouTube Channel: Civil Learning Technology.  I Am Telling This Because Many Important Points I Have Covered During Making Of Video, So If You Want To Know In Detail Then Watch My Video On YouTube Which is Given Below.

A section of Column with proper Reinforcement details is given below. With the help of all these necessary details I am here to teach you to make Bar Bending Schedule of Column.

Column Reinforcement details

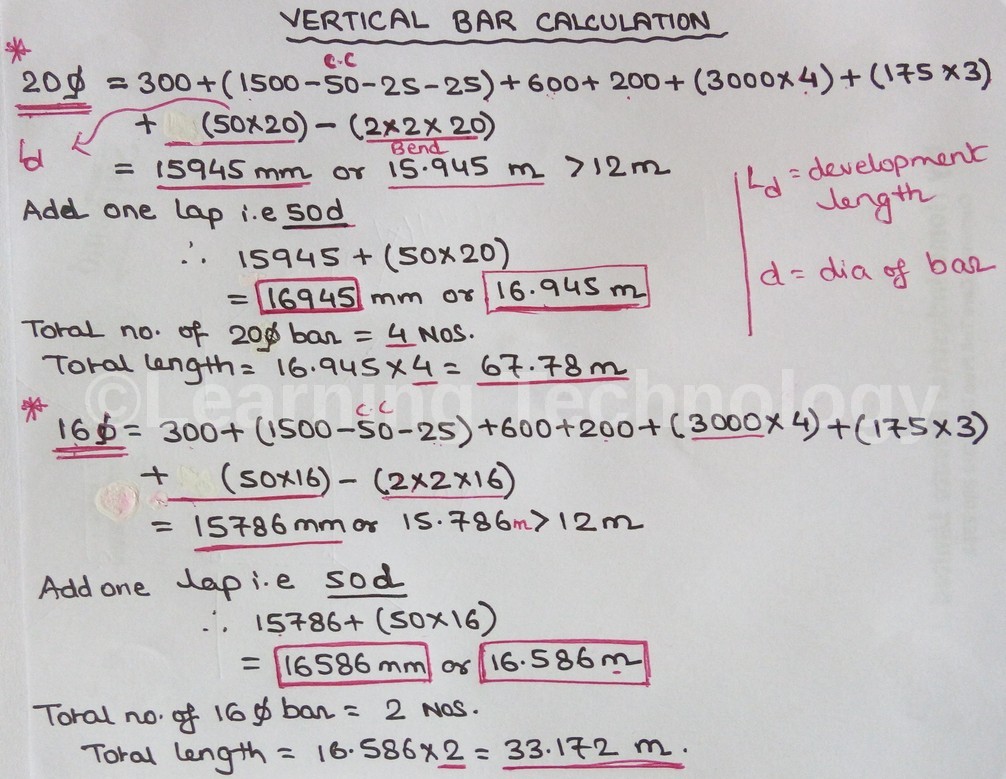

In the figure given below, I have shown How to calculate the cutting length of Vertical bar.
Cutting length of vertical bar

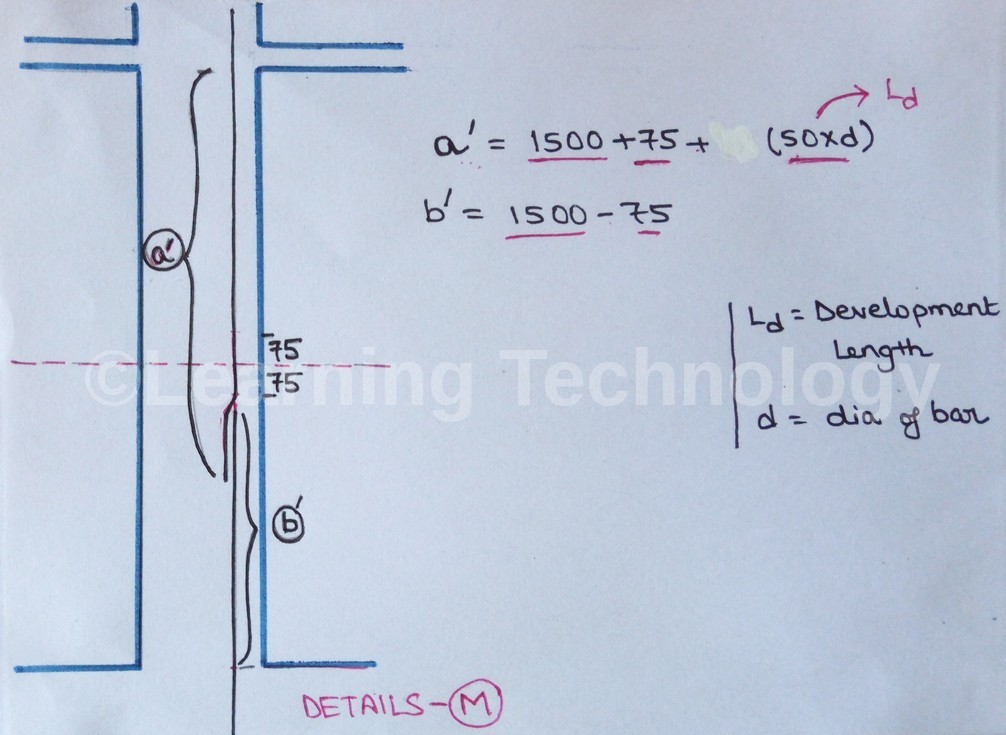

Column Zone A B
Zone View
BBS
In the below figure, I have shown How to calculate the Cutting length of Stirrups Zone wise.
cutting length of stirrups
I hope you find this information useful. If there is something that I have missed or I do not know, you can comment and tell me which I will try to rectify as soon as possible.
