Assembling Process of Aluminium Formwork

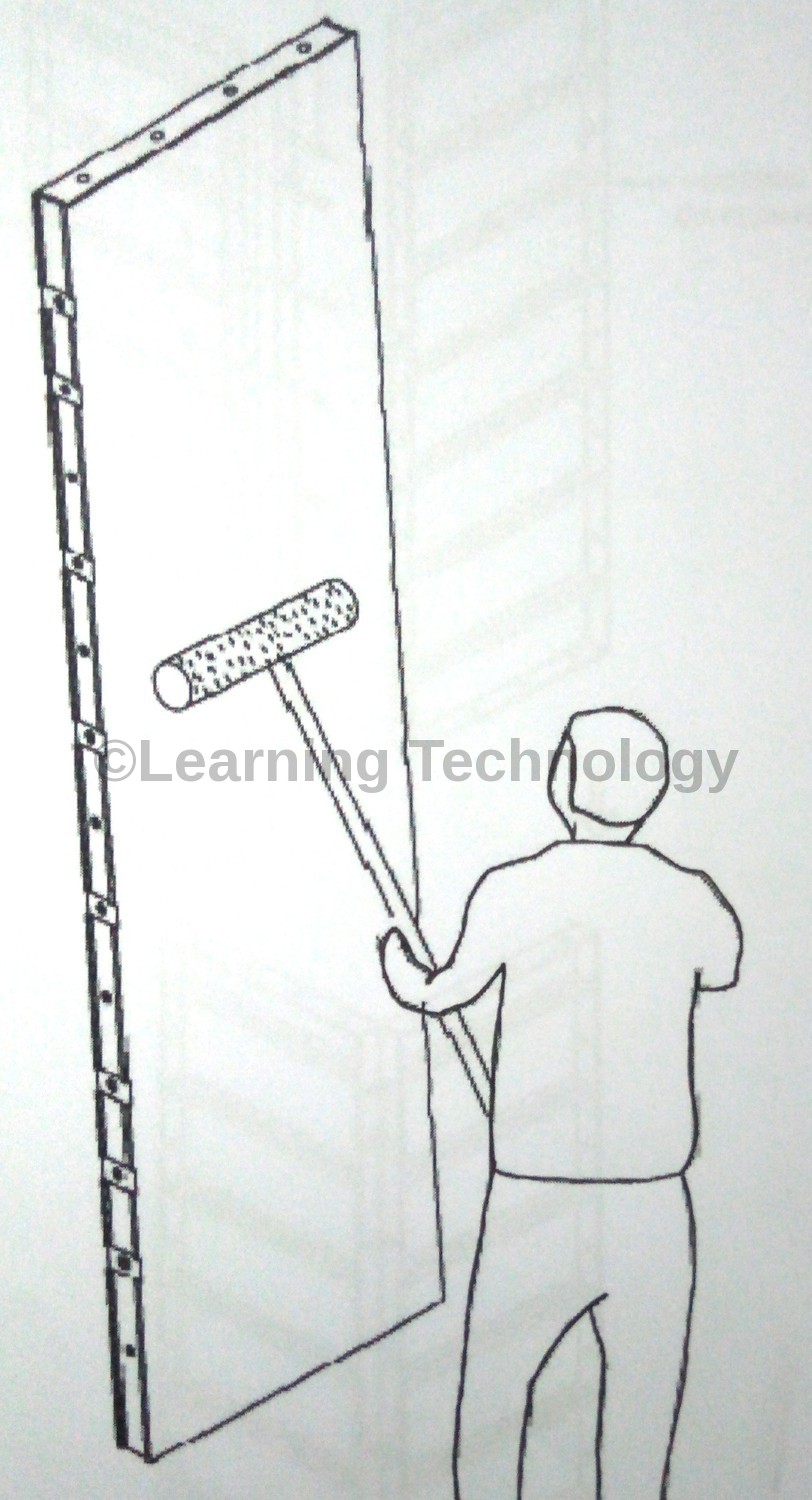

Form Release agent (Solvent-based) to be applied on the surface of all the panels before the assembly process.

Outer Corner is fixed to External Wall Corner panel by round pin and wedge.

• STACKING AND STORAGE OF MATERIALS
• Design and Construction Of Pile Foundations
• Evolution of Retaining Structures
• Glossary Relating To Bitumen And Tar
• Aluminium Formwork Refurbishment
• Safety For Hydraulic Tensioning Jacks
• Methodology of Post Tensioning Work
• Properties of Prestressing HT Strand
• Losses in Pre Stress due to Elastic Shortening
• Jack Pressure for Single and Multi Pull Stressing
• Elongation & Modified Elongation in Prestressing
• Prestressing Materials Management at Site
• Prestressing : Definitions | Advantage | Application
• Slipform – Slipform Planning at Site
• Labour Productivity Norms in Slipform
• Dismantling Procedure of Slipform
• Slipform Reinforcement Schedule Planning
• Assembly of Stair Tower for Slipform
• Assembling Procedure of Tapering Slipform
• Assembling Procedure of Straight Slipform
• Classification Of Slip Form Work
• Design Considerations of SlipForm
• Evolution of Slip Form Now a Days
• Measure Horizontal Distance Using AutoLevel
• Bulking OF Fine Aggregates
• Concrete Cube Samples Taken for Different Volume
• Grades of Concrete as per IS 456 : 2000
• Flowchart For Aluform Work At Site
• Dismantling Process of Aluminium Formwork
• Assembling Process of Aluminium Formwork
• Dismantling Of Slab Aluminium Formwork
• Dismantling Of Wall Column & Beam Formwork
• Aluminium Formwork Concreting Process
• Assembling of Wall Aluminium Formworks
• Assembly Process of Aluminium Formwork
• Aluminium Formwork Worksite Management
• What is 1.54 in Concrete
• De Shuttering Period as per IS 456
• Grade Of Concrete And Its Cement, Sand And Aggregate Ratio
• Derivation Of (d²/162) – Unit Weight Of Bar
• Volume Of Different Shapes

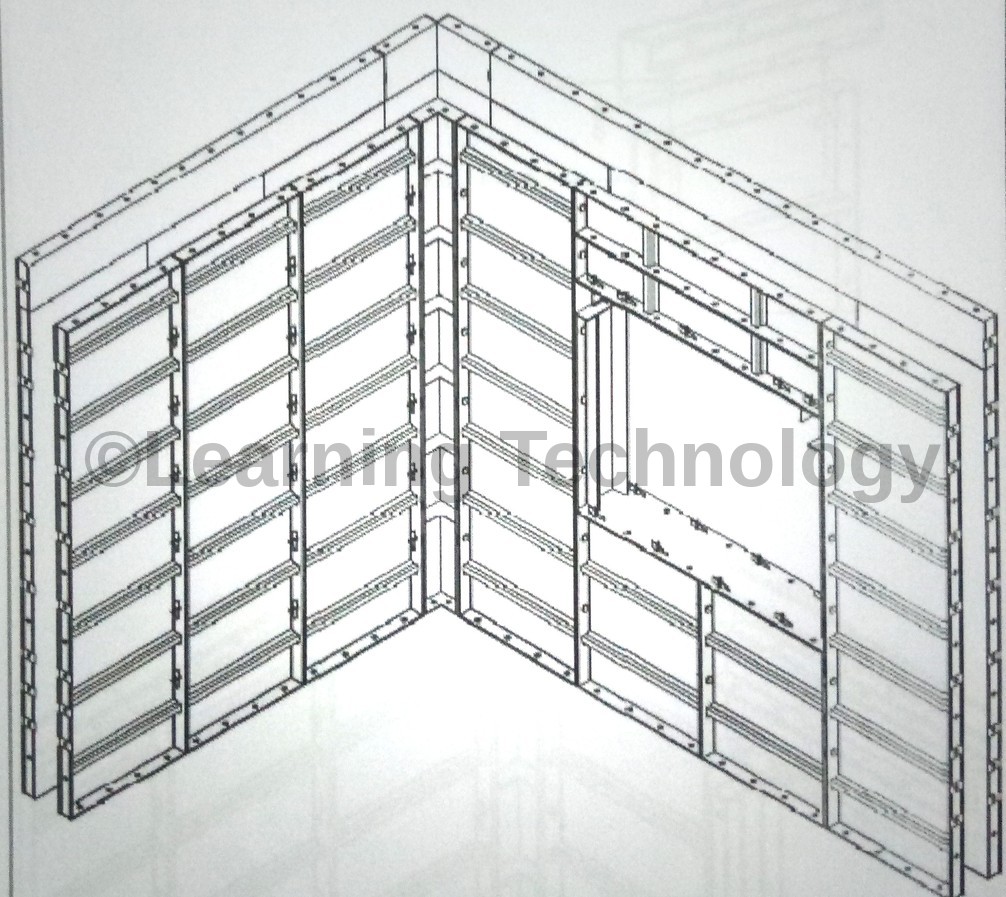

Inner Corner is fixed to the Internal Wall panels by round pin & wedge. The Internal and External Wall Panels are held by Flat Tie with Tie Bar Shield in between the panels.

Repeat Sequence No. 3 to complete the assembly of both the Internal and External Wall Panels.

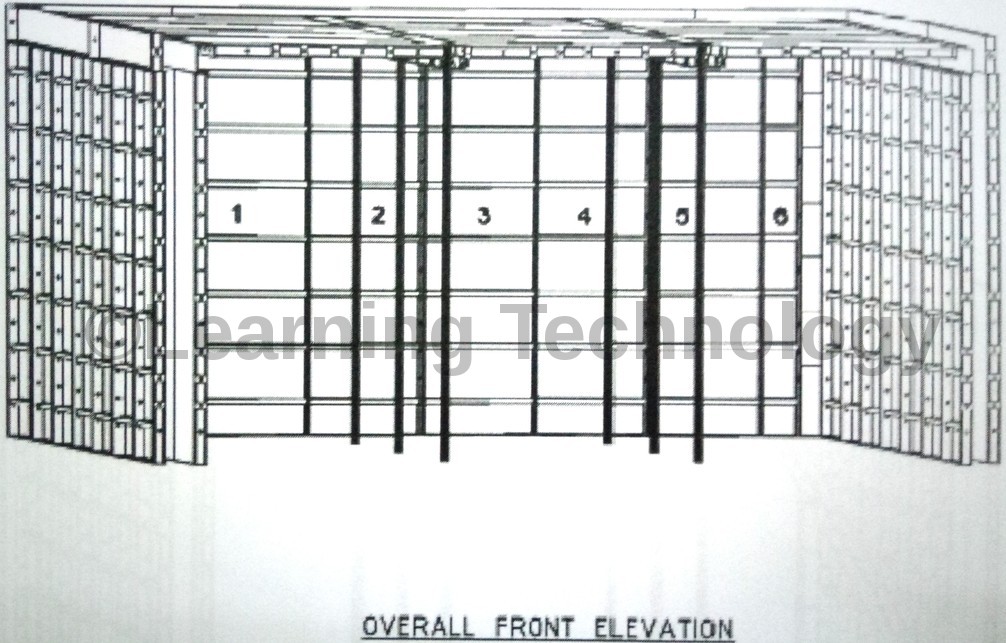

Install Slab Corner on the top portion of the Wall Panels with round pin & Wedge.

Alu spans mid beams/end beams and prop head are combined by beam splice bar with long pin and wedge at the bottom section.

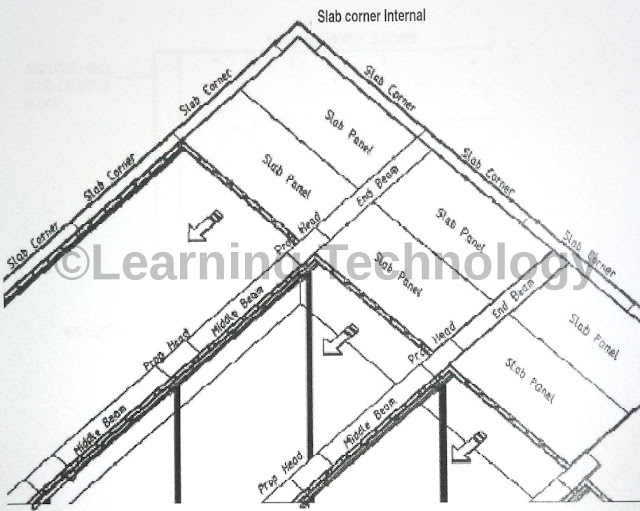

Start the assembly of the Slab Panels from the slab corner Internal. Subsequently, fill out the whole slab area by pinning the slab panels together with the Alu spans (Comprises of Alu spans and cantilevers) Mid Beams / End Beams.

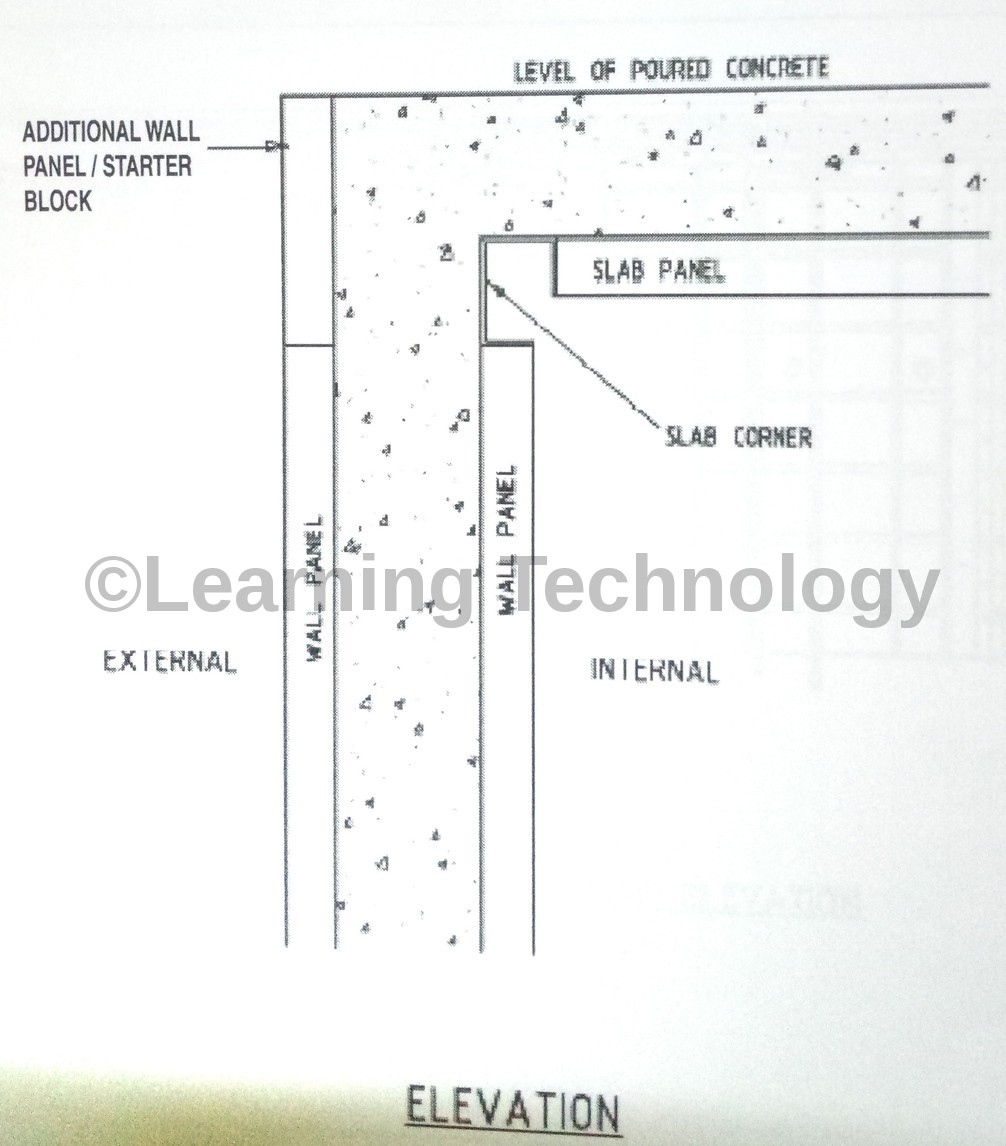

Additional Wall Panels (or Kickers) are fixed to the external Wall Panels to raise to the appropriate height to contain the slab concrete when it is poured.
